usariemen
8 years ago

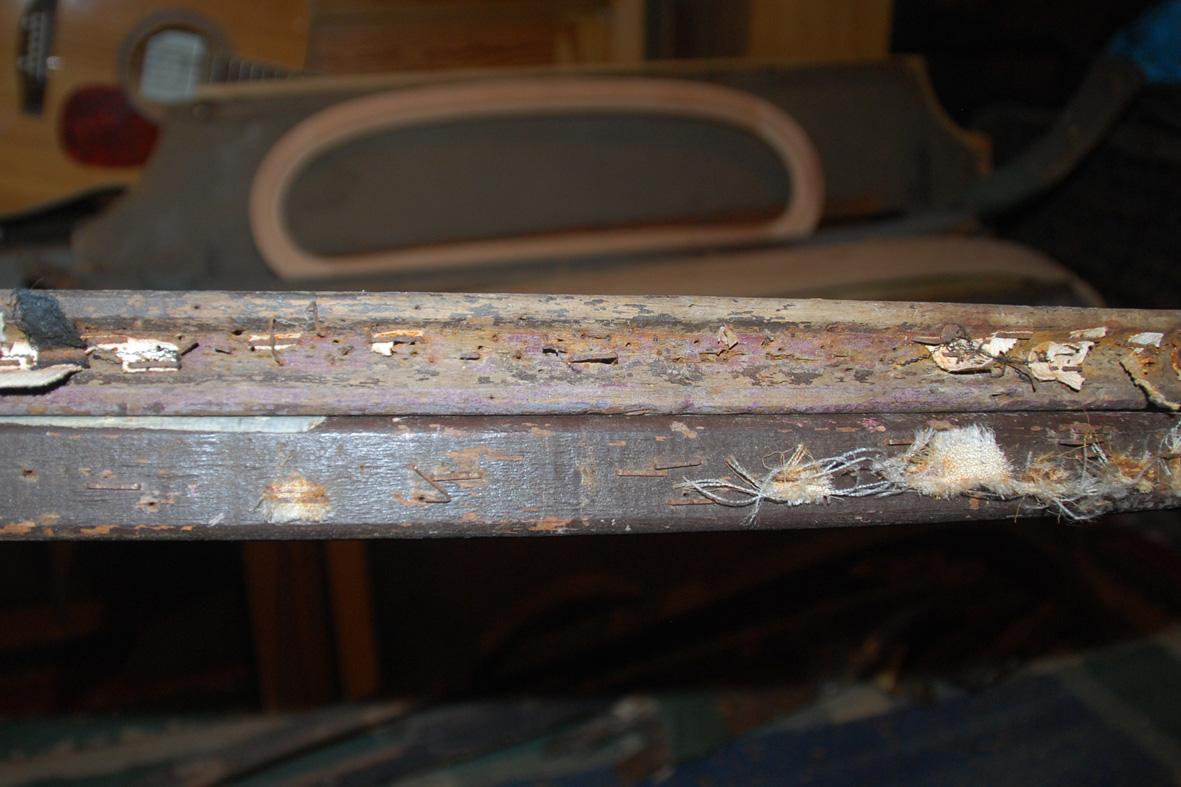

The rear one is grooved on top.
The other one is flat.

UserPostedImage
Master of my domaine.
Hebster52
8 years ago
Perfect! Thanks Carsten! Just as I expected. The width is basically the same on them. Just slightly different curves.
The HebsterWerks.
Hebster52
8 years ago
I wonder if the wood is somehow made rotproof or just painted?
Any of the cloth or stuffing glued to the wood or is everything stapled to the wooden parts?
The HebsterWerks.
Hebster52
8 years ago
Sitting on the livingroom floor on my knees scetching on dimensions for the wooden rear bow and also trying my best in imagening how the bows and frame will fit when folded down....... Not easy to imagine when I dont have an original to look at and compare with....

UserPostedImage
The HebsterWerks.
Hebster52
8 years ago
Also cut parts for the rear bow.

UserPostedImage
The HebsterWerks.
Hebster52
8 years ago
Second bow in the raw, ready to be cut to final shape!

UserPostedImage
The HebsterWerks.
usariemen
8 years ago

... and also trying my best in imagening how the bows and frame will fit when folded down....... Not easy to imagine when I dont have an original to look at and compare with....

Originally Posted by: Hebster52



I was at my frame yesterday.
What do you need?
That is one freaking complicated hell of bows and levers.
So glad that I do not have to "make" one.

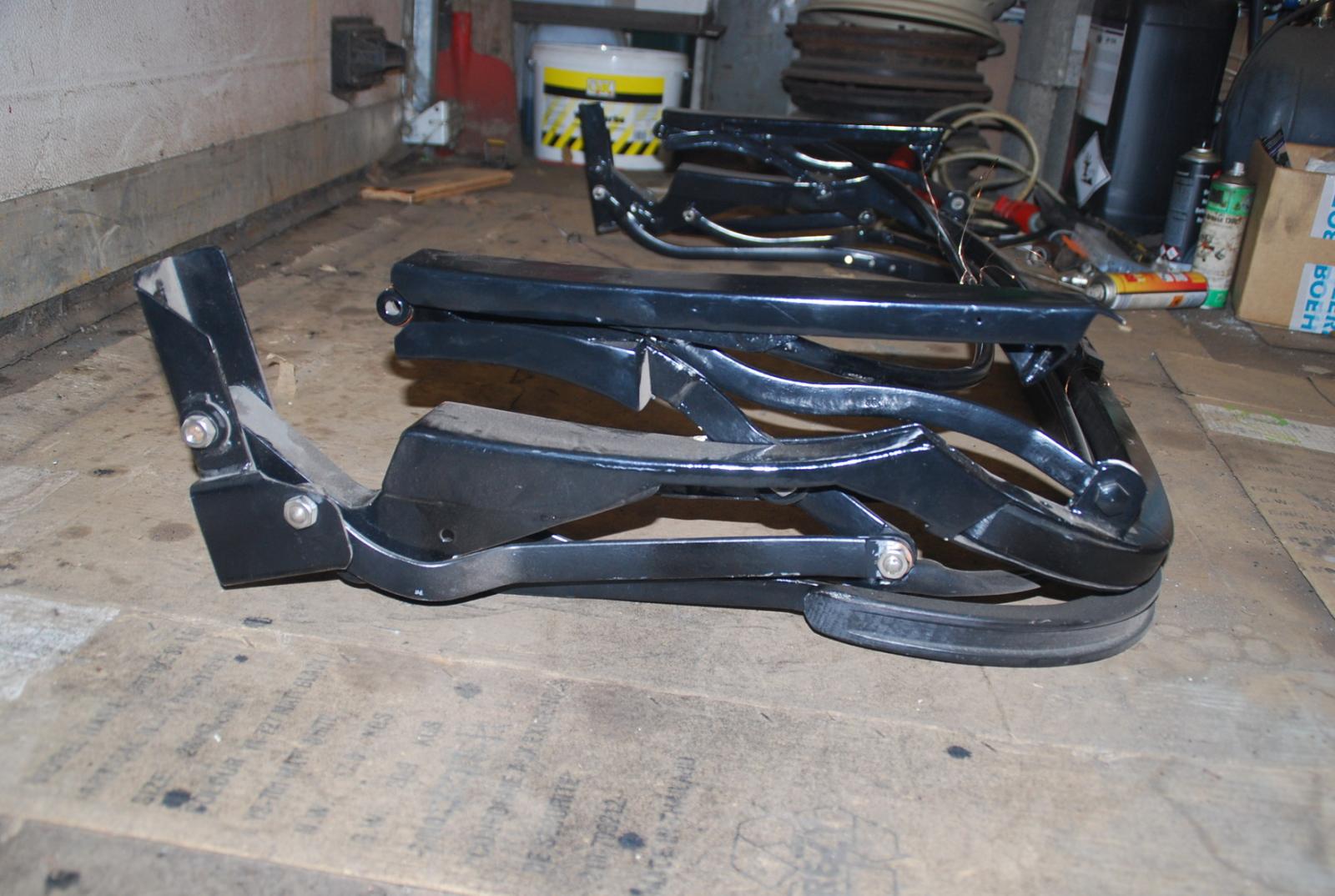

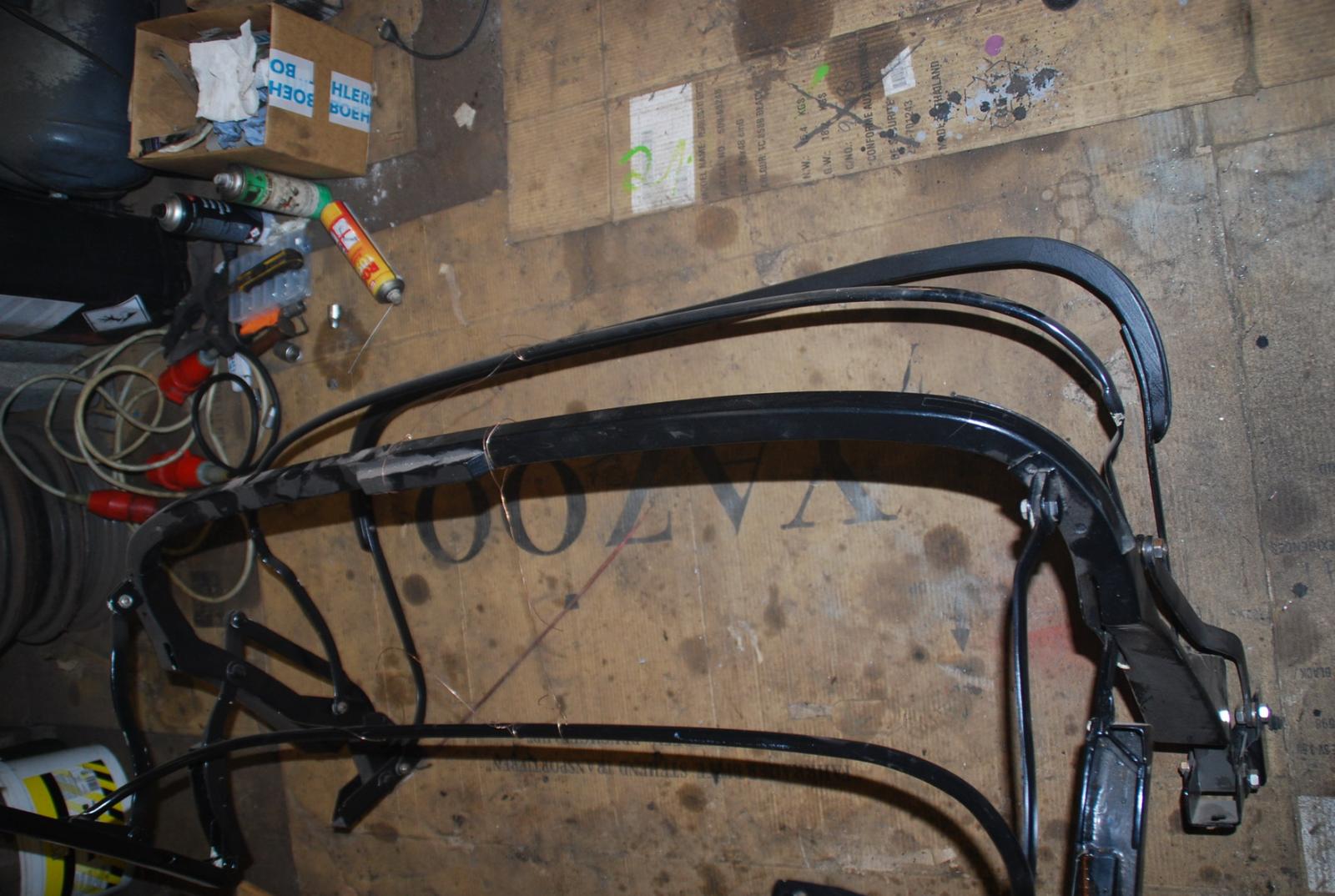

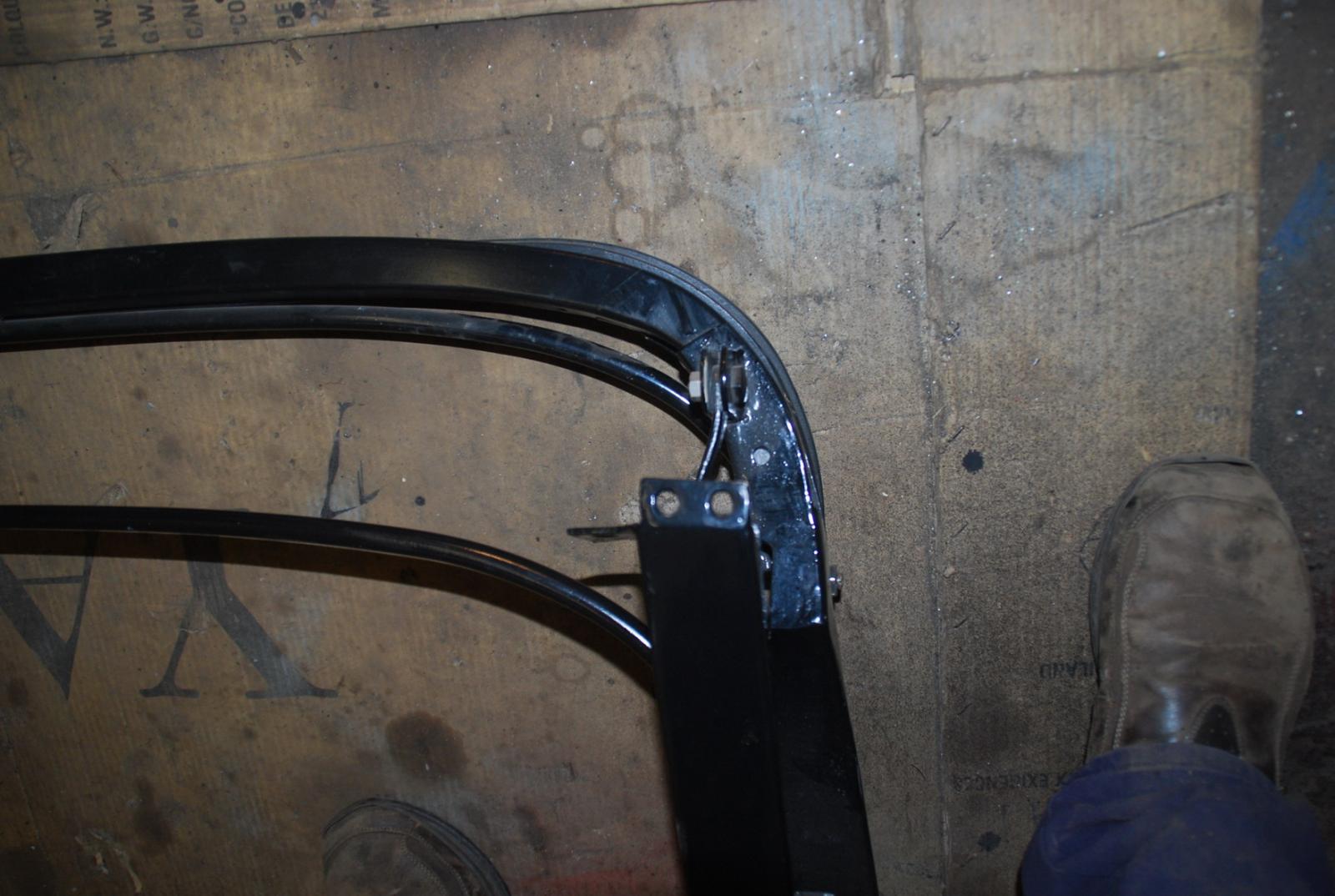

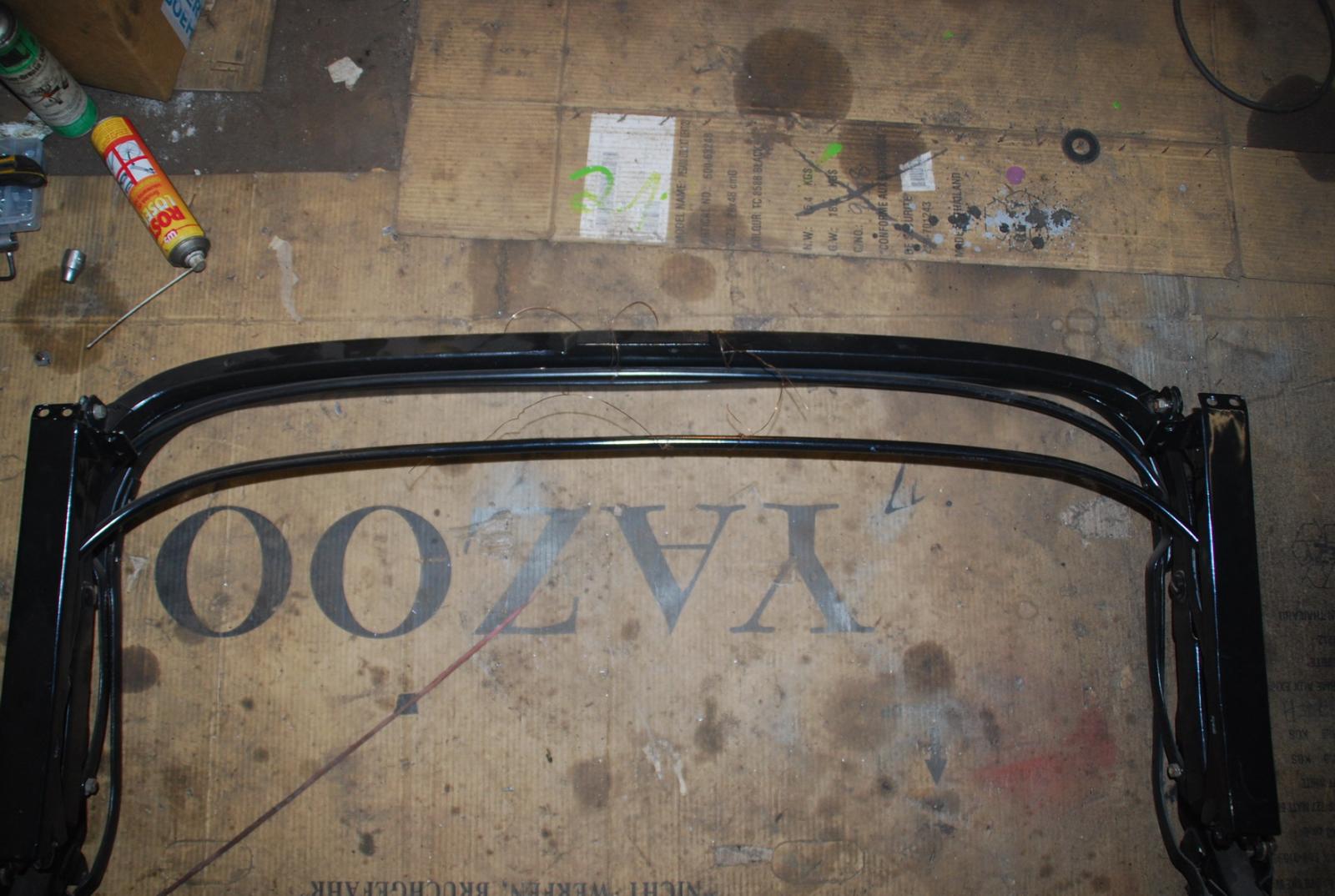

I made some pics.

UserPostedImage

UserPostedImage

UserPostedImage

UserPostedImage

UserPostedImage

UserPostedImage

UserPostedImage
Master of my domaine.
Hebster52
8 years ago
Thanks! That does give me some guidelines. Just trying to think ahead so there is less issues later. ๐Ÿ™‚
The HebsterWerks.
Hebster52
8 years ago
Now ready to be cut to final shape!

UserPostedImage
The HebsterWerks.
Hebster52
8 years ago
And now the bows are cut and middlebow prefitted. Need some minor work before done.

UserPostedImage
UserPostedImage
UserPostedImage

The HebsterWerks.
Hebster52
8 years ago
Today I got these from my co-worker from the workshop. Posing with my custom badges.. :)

UserPostedImage

The HebsterWerks.
AW
  • AW
  • pre67vw Junkie
8 years ago
This is going to be So nice.



Andy W
zelensis61
8 years ago
Serious Business here going on in hebster werks ๐Ÿ˜‰ seems it's going on full speed ahead. .. I better go back in the barn, to catch you up in hessisch. :beer:
ZELENSIS, coachbuilt body from the 50's on a vw platform made in Belgium. Peter the heb detective
Hebster52
8 years ago
Today my cab handles arrived! Thanks Bengt! :)

UserPostedImage
The HebsterWerks.
Hebster52
8 years ago
I's all in the details.. ๐Ÿ˜‰ Even the ones that will not be visible... :D

UserPostedImage
UserPostedImage

The HebsterWerks.
Hebster52
8 years ago
Looks like it will work! :)


The HebsterWerks.
Hebster52
8 years ago
UserPostedImage
UserPostedImage
The HebsterWerks.
Hebster52
8 years ago

Hinges done! ๐Ÿ˜ƒ

UserPostedImage

Originally Posted by: Hebster52



Now I have finished the main parts and tested to mock them up. Next is making all small detail parts so I can finally assemble the frame... ๐Ÿ™‚

UserPostedImage

Originally Posted by: Hebster52



As I felt that the hinges were too tall I decided today to cut off about 10mm off the base of them to drop the frame some at the hinge areaโ€ฆ. :)
So I lined the halves up with the bolts and nuts until I get them welded on the frame.

UserPostedImage
UserPostedImage
The HebsterWerks.
Hebster52
8 years ago
Also started working on the parts for the rear decklidโ€ฆ. Needs some rust repair in the tip. Better do this while I have the inner part drilled outโ€ฆ. :)

UserPostedImage
UserPostedImage
UserPostedImage UserPostedImage
The HebsterWerks.
Hebster52
8 years ago
Challenge is set! Premiere June 23rd 2017! ๐Ÿ˜ƒ
